SETTANTA

Settanta

A Machine Tailored for Demolition

A Machine Tailored for Demolition

SETTANTA is the world’s first machine entirely designed for demolition. Equipped with exceptional technical features, it stands out as unique and highly competitive in its field. This name, chosen for our 70th anniversary (1955-2025), represents not only a significant milestone in the history of our company but also a true technological breakthrough in the demolition sector.

SETTANTA offers an unparalleled weight/performance ratio. With dimensions and weight similar to a 25-ton excavator, this machine was built to excel in every aspect of demolition. Thanks to its variable-width undercarriage, the machine’s performance is guaranteed at any point during its 360-degree rotation.
Powered by a Scania 5-cylinder engine and a Danfoss hydraulic system, SETTANTA is designed to be a formidable force on demolition sites, delivering high performance, easy transportability, and simplified maintenance.

Thanks to our innovative hydraulic quick coupling system, the machine can be equipped with four different interchangeable arms:

  • Demolition arm with a height of 24.5 meters at the pin and a 3,000 kg tool;
  • Triple arm with a height of 14 meters at the pin and a 6,000 kg tool, ideal for crushing and shearing operations at ground level;
  • Telescopic arm with a variable height from 25 to 30 meters and a 2,000 kg tool;

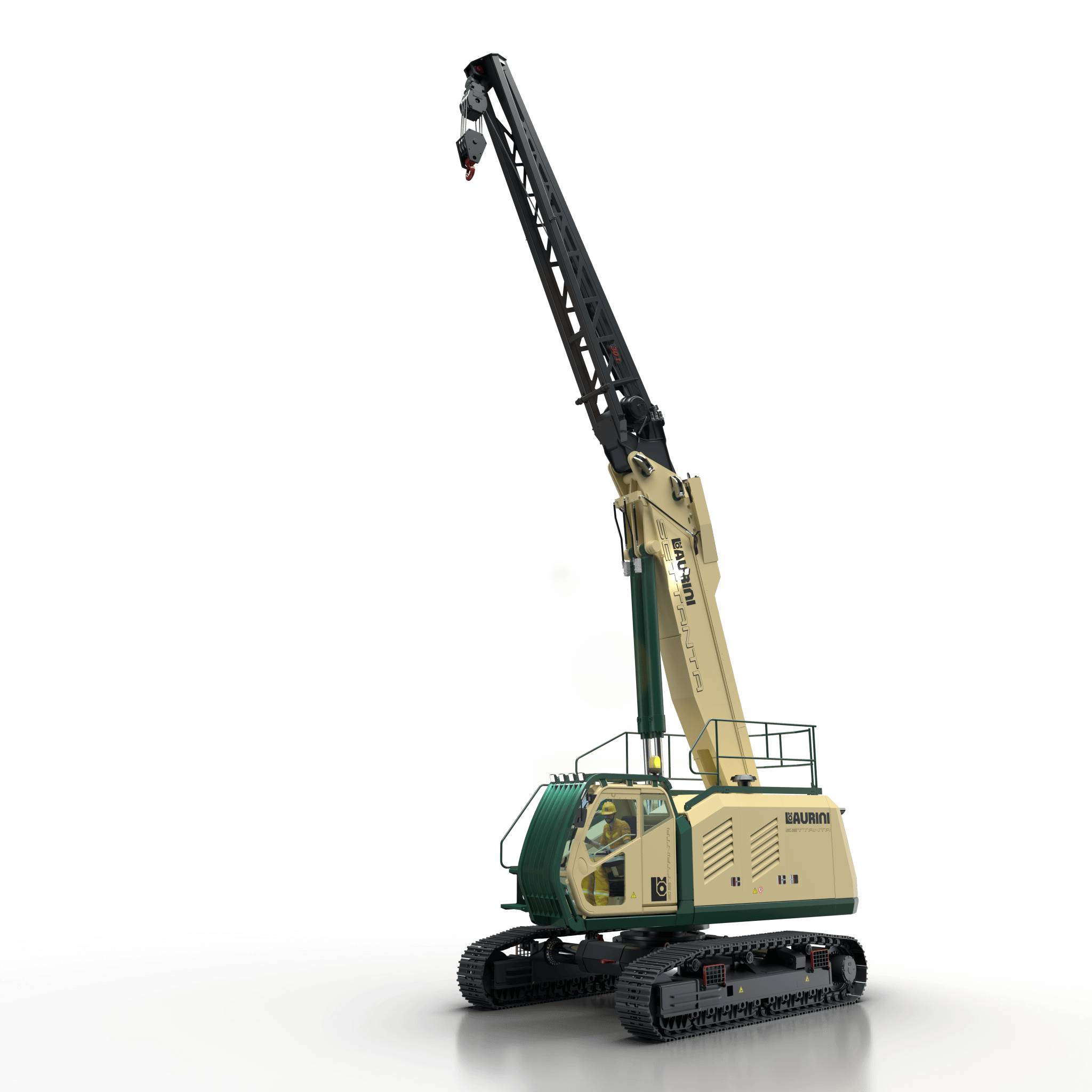

  • Lattice lifting arm with integrated hydraulic winch.

Technical Specifications:

  • Base machine weight: 30,000 kg
  • Machine width in transport configuration: 2.5 meters
  • Expandable undercarriage from 2.5 to 3.7 meters
  • SCANIA DC9 engine with 350 HP
  • Danfoss hydraulic system with Load Sensing dedicated to the tool (flow rate of 400 liters/minute at 350 bar, with booster up to 380 bar)
  • Automatic lubrication system
  • Hydraulically tilting or elevating cabin with ROPS-FOPS protection and heated/ventilated seat
  • 3D camera system
  • High-pressure misting system
  • Air compressor with in-cabin air gun

Technological Innovations

Technological Innovations

One of the most significant innovations introduced with SETTANTA is our “HQCS” quick coupling system, which allows for the automatic connection of all hydraulic and electrical lines without the operator having to leave the cabin. This system is the result of years of development and represents a major added value.

Download Data Sheet

Technical Data

24,5 mt

Maximum Height

39 ton

Operating Height

350 HP

Engine power
Gallery

Power, Precision, Safety
